What is a Deep Groove Ball Bearing?

Picture of Robert Robert : Aug 27, 2025 10:09:58 PM

Deep Groove Ball Bearings Understanding Deep Groove Ball Bearing Precision Ball Bearings

What is a Deep Groove Ball Bearing?

20:15

Deep groove ball bearings are a type of rolling bearing.

Their ability to handle both radial and axial loads in a compact design makes them versatile for many applications.

This blog will take an in-depth look at deep groove ball bearings, covering their structure, working principles, characteristics, and key applications.

Key Features and Design Characteristics of Deep Groove Ball Bearings

Structure

They consist of an inner ring, an outer ring, and a set of steel balls or ceramic balls.

A cage is used to keep the balls evenly spaced.

The raceways, or grooves, in the inner and outer rings are deeper than in other types of ball bearings. This design allows for higher load capacities.

Versatility

Deep groove ball bearings can handle both radial loads and axial loads.

This makes them suitable for many uses, from electric motors to bicycles.

Simple Design

Their basic structure and simple design make them cost-effective and easy to maintain.

They are also widely available in various sizes.

Low Friction

The smooth surface of the balls and raceways reduces friction.

This makes the bearing work more efficiently with less energy loss. It also contributes to quieter operation and helps maintain lower temperatures in the bearing.

Durability

Deep groove ball bearings are durable and built to last.

They can withstand harsh conditions, including high speeds and moderate loads.

This makes them ideal for long-term use in both industrial and consumer applications.

Seals and Shields

Many deep groove ball bearings have seals or shields to protect against dust, moisture, and contaminants.

This helps extend the bearing's lifespan and improve its reliability.

High-Speed Capability

Because of their low friction, deep groove ball bearings can operate at high speeds.

This makes them ideal for electric motors, machinery, and automotive components.

Deep Raceway Grooves

The raceway grooves in deep groove ball bearings are shaped to fit the balls perfectly.

This design allows the bearing to handle both radial loads and axial loads efficiently, ensuring smooth and stable movement.

Single Row vs. Double Row Designs

Feature	Single Row Design	Double Row Design
Structure	One row of balls	Two rows of balls
Load Capacity	Suitable for moderate radial and axial loads	Can handle higher radial and axial loads
Size & Weight	More compact and lightweight	Larger and heavier
Applications	Used in light to moderate load applications, such as electric motors, bicycles, household appliances	Used in heavy-load applications, such as construction machinery, automotive wheel hubs, and heavy-duty industrial equipment
Cost	Lower cost	Higher cost
Stability	Moderate stability	Better load distribution and stability

Variants and Sealing Options

Variant	Description	Applications
Open	No seals or shields, providing easy access for lubrication and maintenance.	Good for clean areas with regular upkeep, like light machines or places where outside dirt is not a problem.
Shielded (2Z)	Features metal shields on both sides, which protect against dust and debris while allowing some ventilation.	Deep groove ball bearings are ideal for environments where dust or dirt might be present. However, full sealing isn't necessary, making them suitable for industrial machinery or automotive applications.
Sealed (2RS)	Equipped with rubber seals on both sides, providing excellent protection against dust, moisture, and contaminants.	Deep groove ball bearings are best for applications in harsh or wet environments. They are ideal for food processing, medical equipment, or outdoor machinery where contamination protection is critical.

Labyrinth Seals

To prevent contaminants like dust and dirt from reaching the bearing, a multi-stage path is created.

This design avoids direct contact with the shaft, minimizing friction.

Lip Seals

This design stops lubricants from leaking and protects the bearing from dust, moisture, and other contaminants.

It creates a tight seal by making direct contact with the shaft.

Materials Used

Material	Description	Impact on Performance and Durability
Bearing Steel	High-carbon chromium steel (e.g., AISI 52100) used for bearing components	Provides high hardness, wear resistance, and good fatigue strength, allowing bearings to perform well under high loads and speeds. Has a long service life but requires protection against corrosion through proper lubrication and seals.
Steel Cages	Made from low-carbon steel or stainless steel, supports the rolling elements and ensures even spacing.	Provides strength and durability, ensuring smooth bearing operation and proper load distribution. Can corrode in damp environments unless made from stainless steel.
NBR Seals	Nitrile Butadiene Rubber, known for excellent oil resistance and good mechanical properties.	Provides good sealing performance, preventing contaminants from entering and retaining lubrication, leading to extended bearing life. Works well in moderate to low temperatures but has limited resistance to extreme heat or chemicals.

Performance Benefits of Deep Groove Ball Bearings

Load Handling Capabilities

Deep groove ball bearings are great at handling high radial loads because they have a large contact area between the balls and rings.

This helps them support heavy forces from the side. They can also handle moderate axial loads, as the balls can bear some thrust in both directions.

This makes them versatile and reliable for many applications with both radial and moderate axial loads.

High-Speed Compatibility

Deep groove ball bearings have low friction because the balls roll smoothly between the inner and outer rings. This allows them to operate with minimal resistance.

As a result, they are perfect for high-speed applications like electric motors, fans, and machinery.

Their low friction reduces energy loss and heat, ensuring smooth and efficient operation at high speeds.

Low Maintenance Requirements

Pre-lubrication in Deep groove ball bearings ensures that the components are coated with lubricant before use. This reduces friction and wear from the start.

It helps the bearing run smoothly right after installation.

As a result, it reduces the need for frequent maintenance and improves long-term performance.

Pre-lubrication helps Deep groove ball bearings last longer by reducing wear and tear.

With the right lubrication, Deep groove ball bearings work smoothly for a longer time.

This leads to less maintenance, fewer replacements, and less downtime. This makes them more reliable and cost-effective, especially in high-demand situations where avoiding failure is important.

Quiet Operation

Super-finished raceways and controlled geometries make bearings smoother and more precise.

The smooth surface reduces friction, which helps limit noise and vibration.

The precise shapes and spacing of the parts help the bearing run more evenly. This leads to quieter and more stable performance.

Applications of Deep Groove Ball Bearings

Electric Motors and Generators

In electric motors and generators, high quality Deep groove ball bearings help reduce noise and ensure smooth operation.

Bearings with smooth surfaces and precise shapes reduce friction and vibrations. This allows the motor or generator to run quietly and efficiently.

This helps prevent wear and heat buildup, improving performance and extending the equipment’s life.

Especially important for machines that need to operate quietly are those used in homes, hospitals, and offices.

Automotive Sector

Car Motors

Deep groove ball bearings reduce friction in the motor, helping it run more efficiently. This lowers heat and improves fuel economy.

Alternators

Deep groove ball bearings within alternators assist in maintaining its smooth rotation.

This ensures the alternator generates power consistently and with less noise.

Transmissions

Deep groove ball bearings in car transmissions help the gears shift smoothly by reducing friction between moving parts.

This improves the performance and lifespan of the transmission system.

Household and Office Appliances

Washing Machines

Deep groove ball bearings in washing machines support the drum’s movement, reducing friction and wear.

This ensures smooth spinning, quiet operation, and extends the life of the machine.

Fans

Deep groove ball bearings help fans run smoothly by supporting the blades and reducing friction.

This allows fans to operate quietly, efficiently, and at higher speeds.

Printers

In printers, Deep groove ball bearings guide moving parts like rollers and cartridges.

This ensures smooth and precise movement for clear prints and reliable performance.

Specialized Applications

Industrial Ovens

Deep groove ball bearings in ovens are used to support rotating parts like conveyor belts and fans.

High-temperature variants ensure smooth operation even in the presence of intense heat, preventing premature failure and maintaining efficiency.

Metallurgy

High-temperature Deep groove ball bearings are crucial in metallurgical processes like steel manufacturing and casting.

They are used in machinery such as rollers, conveyors, and furnaces.

Types of Deep Groove Ball Bearings

Single Row Deep Groove Ball Bearings

Widespread Use

Single row deep groove ball bearings are used in a wide range of applications.

They are found in electric motors, pumps, automotive parts, and household appliances.

They are used wherever reliable performance and cost-effectiveness are needed.

single row deep groove ball bearing

Simple Design

The basic design makes them compact and efficient.

They are also capable of handling both radial loads and moderate axial loads.

This makes them versatile and suitable for various conditions, including high-speed operations.

Single Row Deep Groove Ball Bearings with Filling Slots

How Filling Slots Work

The filling slots enable the accommodation of additional balls within the bearing. This increases its ability to carry radial loads.

More balls create more contact points, which helps spread the load evenly.

This improves the bearing's ability to handle higher forces.

Increased Radial Load Capacity

Deep groove ball bearings allow more balls to fit inside.

This helps support heavier loads without increasing their size. This makes them more efficient for applications that require high radial load capacity.

Examples include electric motors, pumps, and industrial machinery.

Single row deep groove ball bearings with filling slots are excellent at handling radial loads.

However, they have limited ability to handle axial loads (forces along the axis).

Stainless Steel Deep Groove Ball Bearings

Flanged Ball Bearings

Easy Mounting

The flange makes it easier to fix the bearing securely in place.

This is especially helpful in applications where the bearing needs to be mounted onto a housing or surface.

The flange acts as a natural stop or locating feature.

This ensures the bearing is properly positioned without the need for additional mounting hardware.

Improved Alignment

The built-in flange helps ensure proper alignment of the bearing during installation.

It prevents the bearing from moving out of place, reducing the risk of misalignment that can lead to premature wear, noise, or failure.

This makes flanged ball bearings ideal for applications where precise alignment is important.

Examples include conveyor systems, rollers, and automated machinery.

Compact Design

Their simple design allows them to fit into smaller assemblies while still offering reliable performance.

This makes flanged ball bearings an excellent choice for compact and portable devices.

They are ideal where minimizing size while maintaining functionality is crucial.

stainless steel deep groove ball bearings

Snap Ring Groove Ball Bearings

The snap ring groove in flanged ball bearings is designed to hold a snap ring in place.

This secures the bearing in position within a housing or mounting surface.

The snap ring fits into this groove, preventing the bearing from shifting or coming loose during operation.

This feature is particularly useful in applications where stability and secure mounting are important.

It ensures the bearing stays in place despite external forces or vibrations.

Flanged ball bearings with a snap ring groove are great for applications where axial movement (movement along the shaft) needs to be controlled.

The snap ring prevents the bearing from moving along the shaft.

This ensures everything stays properly aligned and reduces the risk of wear or damage.

Snap ring groove ball bearings are used in systems like conveyors and pumps where it’s important to keep parts from shifting axially.

snap ring groove ball bearing

Double Row Deep Groove Ball Bearings

Higher Load Distribution

The two rows of balls distribute the load more evenly.

This allows the bearing to handle higher radial loads compared to single-row bearings.

The additional row of balls provides more contact points.

This increases the bearing's overall strength and ability to support heavier loads.

Increased Axial Load Capacity

Double row deep groove ball bearings can handle both radial and moderate axial loads.

They are capable of managing loads in both directions. This makes them more versatile for demanding applications.

High-Load Applications

They can handle heavier radial and axial loads. This makes them perfect for heavy machinery and construction equipment.

They are also ideal for industrial motors, where large forces need to be supported without affecting performance or stability.

Short-Shaft Scenarios

The compact design of double row deep groove ball bearings makes them ideal for short-shaft applications.

They are used in gearboxes, pumps, and small motors, where space is tight and efficient load handling is important.

double row deep groove ball bearings

Comparison with Other Bearing Types

Deep Groove Ball Bearings vs. Angular Contact Ball Bearings

Feature	Deep Groove Ball Bearings	Angular Contact Ball Bearings
Load Handling	Can handle radial loads and moderate axial loads in both directions.	Designed to handle high axial loads in one direction, in addition to radial loads.
Load Direction	Primarily for radial loads but can manage light axial loads.	Capable of handling combined radial and axial loads.
Axial Load Capacity	Moderate axial load capacity in both directions.	High axial load capacity in one direction, requires paired bearings for axial load in both directions.
Speed Capability	High-speed operation with low friction.	Moderate speed capability; higher friction than deep groove bearings.
Applications	Common in motors, pumps, fans, automotive parts, and general machinery where radial loads are more significant.	Used in spindles, machine tools, precision instruments, and high-performance equipment where both radial and axial loads are present.
Mounting	Easy to mount in various setups.	Often requires precise alignment and pairing with other angular contact bearings.
Versatility	Extremely versatile and cost-effective for general purposes.	Ideal for applications requiring high axial load handling and precision.

Deep Groove Ball Bearings vs. Roller Bearings

Feature	Deep Groove Ball Bearings	Roller Bearings
Design	Consist of balls placed between an inner and outer race.	Use cylindrical or tapered rollers instead of balls, which have more contact area with the race.
Load Handling	Best for radial loads and moderate axial loads.	Can handle heavier radial loads and high axial loads (depending on type).
Load Distribution	Load is distributed across the balls, which have less contact area than rollers.	Load is distributed over larger contact areas due to the rollers, providing higher load capacity.
Friction	Low friction because of the smooth rolling of balls.	Higher friction compared to ball bearings, as rollers have more surface contact.
Speed Capability	High-speed capability because of lower friction.	Lower speed capability, but some roller bearings can handle both radial and axial loads.
Durability	Moderate durability for general use.	Higher durability for heavy-duty applications, especially for heavy loads.
Performance in Harsh Environments	Suitable for light-duty operations with moderate loads in standard environments.	Ideal for heavy-duty and high-load applications, and often used in harsh environments.
Applications	Common in motors, automotive parts, pumps, and household appliances where space and speed are priorities.	Common in industrial machinery, conveyors, heavy trucks, and gearboxes, where heavy loads are a concern.
Size and Weight	Compact design with lightweight construction.	Larger and heavier compared to ball bearings, because of the use of rollers.

Choosing the Right Deep Groove Ball Bearing

Load Requirements

When choosing the right Deep Groove Ball Bearing, consider the amount of radial load your application will put on the bearing. Also, think about the axial load the bearing will need to handle.

These bearings work well for moderate radial loads and can handle some axial forces. However, they aren't suitable for heavy axial loads.

If your application involves larger axial forces, you may need a different bearing.

Angular contact or roller bearings are better suited for handling higher loads.

Make sure the bearing you choose matches your load needs for the best performance and longer life.

Speed and Noise Considerations

When choosing bearings, think about the speed and noise needs of your equipment.

For high-speed use, choose bearings with low friction to reduce heat and wear, like Deep Groove Ball Bearings.

If keeping noise low is important, choose bearings with a smooth finish. You may also want to consider sealed or shielded bearings to reduce friction and vibrations.

Make sure the bearing fits your speed and noise requirements for the best performance.

Environmental Factors

When choosing bearings, think about temperature, contamination, and sealing.

For high temperatures, pick bearings made from heat-resistant materials. If your equipment is exposed to dirt or dust, go for sealed bearings to keep out contaminants.

Additionally, ensure that the seals meet your specific requirements, whether for preventing the entry of dirt or retaining lubrication.

Choosing the right bearing for these factors will help it work better and last longer.

Maintenance and Longevity Tips

Lubrication

Grease helps reduce friction in bearings, preventing wear and extending their life.

It also keeps dirt and moisture out, protecting the bearing.

However, in certain conditions like high speeds, extreme temperatures, or heavy loads, the grease can wear out.

That's why re-lubrication is needed to keep the bearing running smoothly.

Regularly adding grease helps prevent damage and keeps things working well.

Installation Tips

To avoid premature wear, make sure the bearing is properly aligned with the shaft and housing during installation. Misalignment can cause uneven pressure and damage.

Also, handle the bearing carefully to prevent any damage. Use the appropriate tools and avoid forcing the bearing into position.

Proper alignment and gentle handling will help the bearing last longer and work smoothly.

Regular Inspection

Regularly inspect bearings for signs of wear, contamination, and seal damage.

Pay attention to any rough spots or unusual noise, as these may indicate the bearing is deteriorating.

Make sure the seals are not damaged and are keeping out dirt and moisture.

These simple checks help catch problems early and keep the bearing working well for longer.

Conclusion

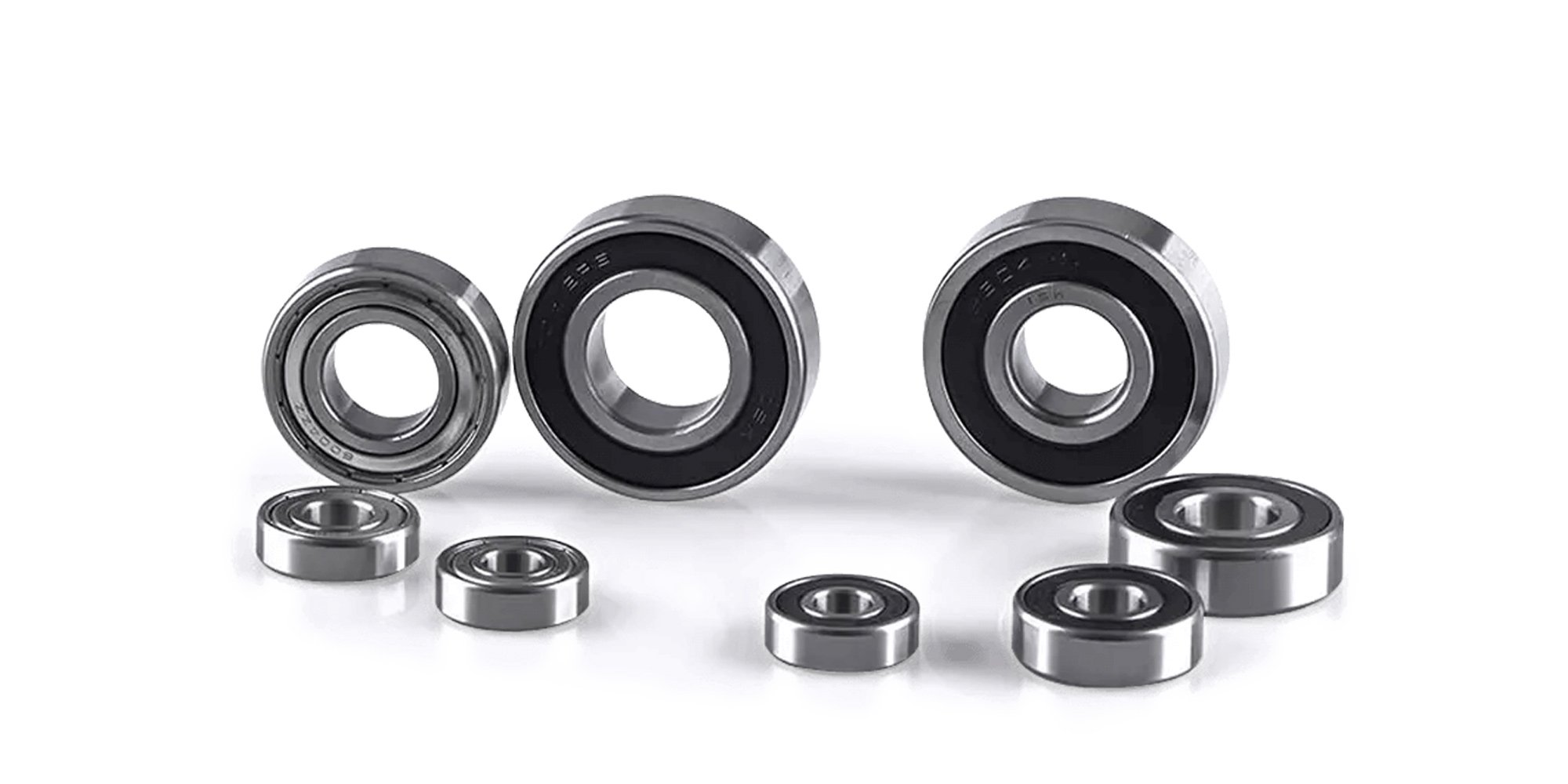

Deep groove ball bearings are versatile, handling both radial and moderate axial loads, making them suitable for many applications.

Explore LILY Bearing’s wide range of products to find the perfect bearing for your needs. If you need help, feel free to contact us for expert advice and guidance.
