Needle Bearings: Types and Features

Needle roller bearings are great for saving space while supporting heavy loads. Their small, cylindrical rollers reduce friction, making them perfect for tight spots where strength is important. Needle bearings are often used in car engines, gearboxes, and industrial machines, helping them run smoothly and last longer by reducing wear.

Needle bearings are great because they are small but can handle heavy loads. Their design reduces friction, making things run smoothly and stay cooler. They can carry more weight than other bearings of the same size and last longer because of less wear. Needle bearings also help machines work more efficiently by speeding things up and saving energy.

This blog talks about different types of needle bearings, their features, and how they are used in various industries. It explains the benefits, such as carrying heavy loads, reducing friction, and saving space. The goal is to help readers understand how needle bearings are different from other types and choose the right one to make machines work better and last longer.

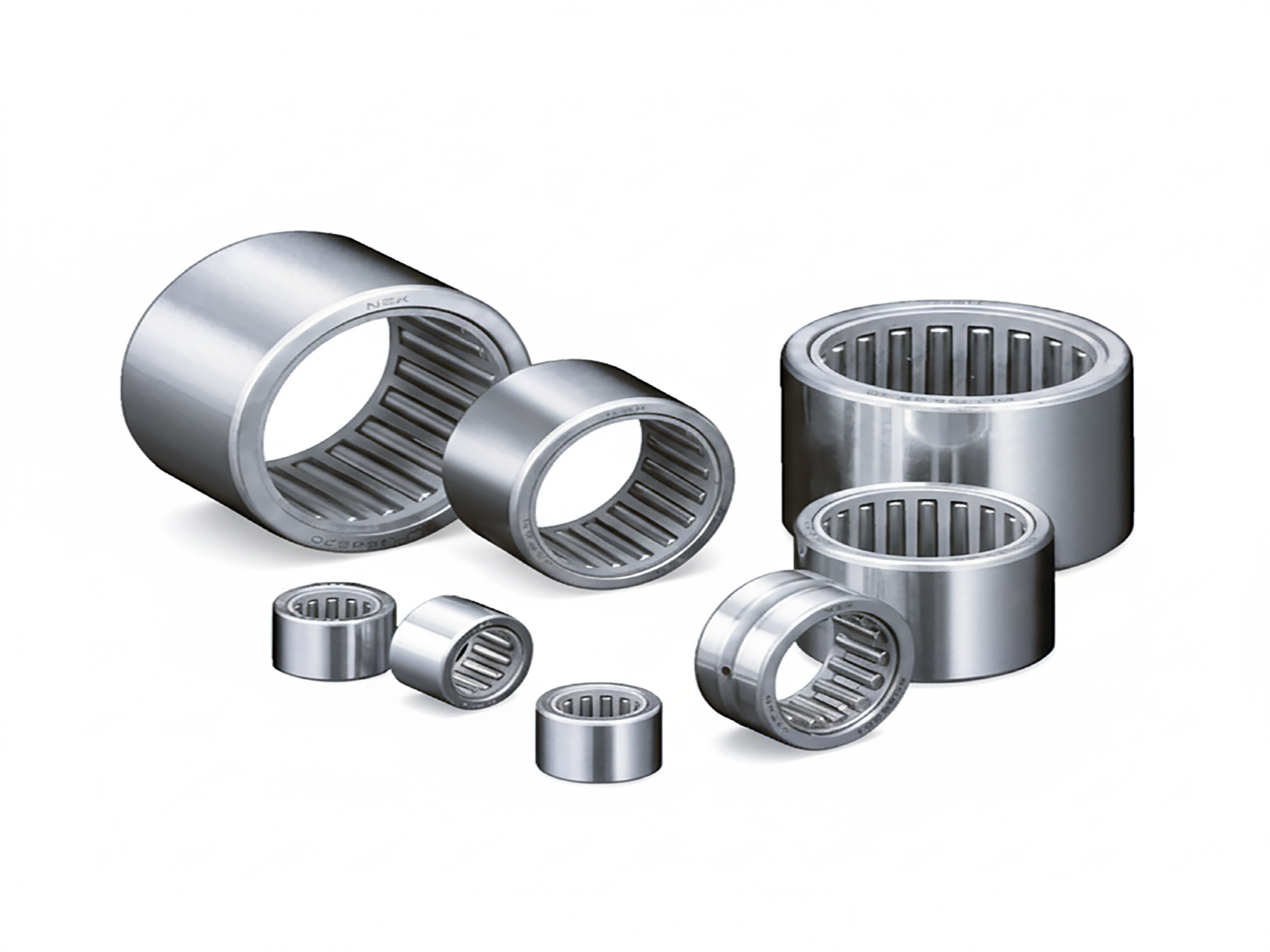

Needle Bearings

What Are Needle Bearings?

Needle bearings are a type of roller bearing with thin, cylindrical rollers that are much longer than they are wide. Their primary function is to reduce friction between moving parts while supporting heavy loads. Because of their compact size, they are ideal for applications where space is limited, yet high load capacity and efficiency are needed.

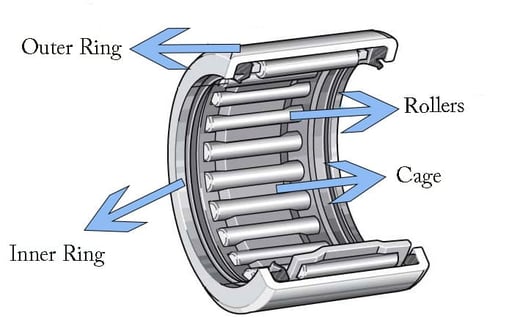

Needle bearings consist of several key components:

• Needles: These are the thin, cylindrical rollers that are much longer than their diameter. They are the main load-bearing elements.
• Cage: The cage holds the needles in place and keeps them evenly spaced. It helps prevent the rollers from coming into contact with each other, ensuring smooth rotation.
• Outer Race: This is the outer ring that provides the surface for the needle rollers to roll against. It provides structural support to the bearing.
• Inner Race: Some needle bearings also have an inner race, providing a surface for the needles to rotate around when they are part of a shaft assembly.

Types of Needle Bearings

Full Complement Needle Roller Bearings

A set of needle rollers without a cage consists of thin, cylindrical rollers placed close together between the inner and outer parts of the bearing. Since there’s no cage to separate them, the rollers touch each other, which may reduce the smoothness of movement and load capacity compared to caged needle bearings. This design is used in situations where space is tight and the load isn’t too heavy.

Common materials include

• Steel: The most common material, offering strength, toughness, and resistance to wear.
• Stainless Steel: It is used for corrosion resistance. This is especially important in environments exposed to moisture or chemicals.
• Ceramic: Sometimes used for specific applications where high speed or extreme conditions are required, as they are lightweight and have excellent wear resistance.

Manufacturing Process

• Material Selection: High-quality raw materials like steel or stainless steel are chosen for the bearing components.
• Heat Treatment: The materials are heat-treated to harden them, improving strength and wear resistance.
• Roller Shaping: The steel is formed into long, cylindrical shapes to create the needle rollers. This process can involve drawing, grinding, or pressing.
• Assembly: The needle rollers are arranged between the inner and outer races. In bearings without a cage, the rollers are arranged in direct contact with each other.
• Finishing: The components are finished carefully to have smooth surfaces and exact sizes for the best performance.

Key structural features that contribute to high load capacity in needle bearings include

• Long, Cylindrical Rollers: The thin, long shape of the rollers distributes the load over a larger area, allowing the bearing to handle more weight.
• Large Number of Needles: More rollers in contact with the races increase the load-bearing surface, enhancing the load capacity.
• Hard Materials: Strong materials like steel or stainless steel help the bearing handle heavy loads without bending or breaking.
• Smooth Surface Finish: Well-finished surfaces reduce friction, preventing wear and helping the bearing carry heavier loads efficiently.
• Tight Tolerances: Precise manufacturing makes sure the rollers fit well in the races. This helps distribute the load evenly and boosts performance.

Typical Applications of Needle Bearings

• Automotive Engines: Used in crankshafts, camshafts, and transmission systems for smooth rotation and high load capacity.
• Industrial Machinery: Found in gearboxes, conveyors, and pumps, where space is limited but heavy loads need to be supported.
• Aerospace: Used in components like landing gear and actuators to handle high stress while saving space and weight.
• Agricultural Equipment: They are used in equipment like harvesters and tractors, where durability and performance are crucial.
• Power Tools: Used in drills, saws, and other tools for smooth operation and long-lasting performance.

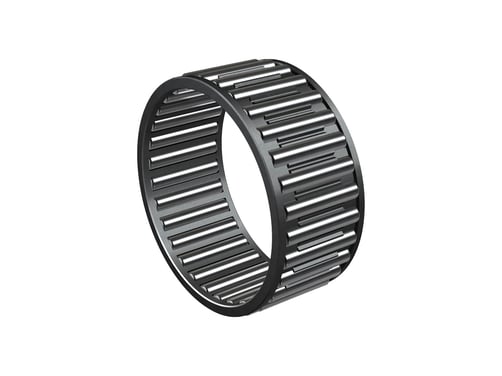

Caged Needle Roller Bearings

The cage in caged needle roller bearings keeps the rollers evenly spaced, preventing them from touching each other and ensuring smooth rotation. The cage also helps maintain proper alignment of the rollers within the bearing, improving load distribution and reducing friction. This leads to better performance, higher load capacity, and a longer lifespan for the bearing.

Common materials of the cage include

• Steel: Often used because of its strength and ability to handle high stresses and heavy loads.
• Stainless Steel: It resists corrosion, making it ideal for tough environments with moisture or chemicals.
• Polyamide (Plastic): A lightweight material often used for cages in smaller or lighter-duty applications. It is resistant to wear, has low friction, and is cost-effective.
• Bronze or Brass: They are sometimes used for high-temperature applications. This is because of their good thermal conductivity and wear resistance.

Caged needle roller bearings are preferred over full complement types in the following scenarios

• High-Speed Applications: Caged bearings reduce friction by keeping the rollers evenly spaced. This allows for smoother and faster rotation compared to full complement bearings.
• Applications with Limited Space: The cage helps maintain proper alignment of the rollers, making caged bearings more compact and efficient in confined spaces.
• Heavy Load Conditions: Caged bearings can handle heavy loads and move smoothly, while full complement bearings may have performance issues under these conditions.
• Longer Lifespan Requirements: The cage minimizes roller wear and prevents direct contact between rollers, leading to longer bearing life compared to full complement bearings.
• Lower Maintenance Needs: Caged bearings require less maintenance since the cage ensures rollers remain properly spaced and aligned, reducing the chance of damage or wear.

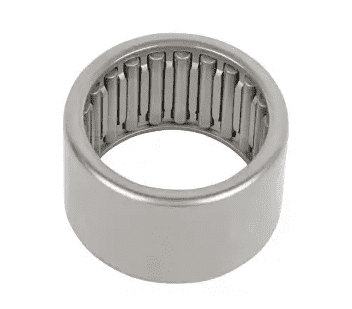

Drawn Cup Needle Roller Bearings

The deep drawn, thin-walled outer ring of a drawn cup needle roller bearing is made from a single piece of metal shaped into a cup. This design makes the bearing compact and lightweight while still strong enough to handle heavy loads. The thin walls help the bearing fit into tight spaces and allow smooth movement of the rollers inside.

Drawn cup needle roller bearings don’t have an inner ring, so the shaft acts as the raceway for the rollers. This saves space and makes the bearing smaller. However, the shaft must have a smooth, hard surface to work well and avoid wear. Without an inner ring, these bearings aren’t ideal for shafts that are rough or easily damaged.

Non-hardened housings can serve as raceways for needle roller bearings when the load and speed are low to moderate. The housing's surface must be smooth and well-finished to allow the rollers to move without causing damage. Although non-hardened materials are not as durable as hardened ones, they can still work effectively in less demanding applications. Using non-hardened housings can also reduce costs and simplify assembly in certain designs.

Drawn cup needle roller bearings are great for tight spaces because of their thin design. They can also work with non-hardened housings since the outer ring acts as the raceway. However, non-hardened housings are better for light to moderate loads and slower speeds, as they wear out faster under heavy use. These bearings are a cost-effective and space-saving option for less demanding applications.

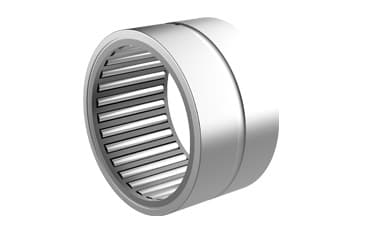

Heavy Duty Needle Roller Bearings (Machined)

Heavy-duty needle roller bearings are made using machining, where the metal is carefully cut and shaped. This process ensures precise sizes, smooth surfaces, and perfect alignment of parts. It helps reduce friction, improves performance, and makes the bearings strong and reliable for heavy-duty use.

Heavy-duty needle roller bearings often use carbon chromium bearing steel for added strength. This material is tough, wear-resistant, and can handle heavy loads and high stress. Its durability ensures longer bearing life, even in demanding applications.

Heavy-duty needle roller bearings are used in various applications based on their design variations

• Construction Equipment: Bearings with high load capacity and durability are ideal for cranes, excavators, and loaders. They can handle the stress of heavy lifting and tough environments.
• Heavy Machinery: High-performance and precision variants are used in industrial presses, forging machines, and mining equipment. They handle heavy loads and run smoothly.
• Automotive Systems: Compact and robust designs are suitable for transmissions, axles, and gearboxes. They provide reliable performance under high speeds and loads.
• Agricultural Equipment: Durable bearings resistant to harsh conditions are used in tractors, harvesters, and plows.

Thrust Needle Roller Bearings

Thrust needle roller bearings are designed to manage axial forces, which are forces that push along the axis of a bearing. These bearings consist of needle rollers arranged between two raceways, allowing them to support heavy axial loads while maintaining smooth motion. They work by distributing the axial force evenly across the rollers, preventing wear and ensuring efficient operation. Thrust needle roller bearings are commonly used in applications where the primary load is along the shaft, such as in automotive clutches and machine tools.

Thrust needle roller bearings manage axial forces by using small rollers between two raceways. These rollers spread the force evenly, reducing friction and wear. This helps the bearing handle heavy loads and run smoothly in machines like clutches and gearboxes.

In thrust needle roller bearings, the rollers are arranged perpendicular to the shaft. This means the rollers stand upright, with one end touching the shaft and the other end resting against the raceway. This orientation allows the bearings to efficiently handle axial forces, as the rollers distribute the force evenly across the bearing surfaces, providing smooth and stable motion.

Thrust needle roller cage assemblies are used in combination with thrust needle roller bearings to hold the rollers in place and ensure they remain evenly spaced. The cage helps prevent the rollers from coming into direct contact with each other, reducing friction and wear, while also allowing for smoother motion.

Thrust washers, often used alongside thrust needle roller bearings, serve as a supportive surface for the rollers. They help distribute the axial load evenly and protect other components from wear by providing a stable contact surface. Together, thrust needle roller cage assemblies and thrust washers ensure the efficient operation and long lifespan of the bearing system.

One way needle roller bearing clutches

A one-way torque transmission mechanism, commonly found in one-way needle roller bearing clutches, allows torque to be transmitted in one direction only. In this mechanism, the needle rollers are arranged between an inner and outer raceway. When torque is applied in the intended direction, the rollers rotate and allow the inner and outer races to move together, transmitting torque.

When torque is applied in the opposite direction, the rollers lock between the raceways and stop movement. This keeps the torque from going in the wrong direction, acting like a lock. One-way needle roller bearing clutches are used in cars, conveyors, and machines to control motion and prevent reverse movement.

In a one-way needle roller bearing clutch, components like the spring and plastic cage play crucial roles in its operation

• Spring: The spring ensures that the rollers are pushed against the raceways, providing the necessary pressure for locking the clutch when torque is applied in the opposite direction. It helps maintain the engagement of the rollers in the correct position, ensuring the clutch functions properly.
• Plastic Cage: The plastic cage holds the needle rollers in place, preventing them from coming into direct contact with each other. This reduces friction and wear, ensuring smooth operation. The cage also helps maintain even spacing between the rollers, which is essential for the efficient transmission of torque in the right direction.

One-way clutches are preferred in several scenarios where controlling the direction of motion is important

• Automotive Clutches: In vehicles, one-way clutches are used in systems like the starter motor or in the freewheel mechanism. They allow the engine to engage and disengage smoothly, ensuring that torque is transmitted only when needed, and preventing reverse motion when the engine is not running.
• Conveyor Systems: In conveyor systems, one-way clutches prevent the backflow of materials or reverse motion of the conveyor belt. They ensure that the belt only moves in one direction, improving the efficiency of the system and preventing jams or damage caused by reverse motion.
• Bicycle Freewheels: One-way clutches are used in bicycles to allow the wheel to rotate freely when pedaling stops, enabling the bike to coast without pedaling.
• Wind Turbines: In wind turbines, one-way clutches stop the blades from rotating backward. This ensures the blades only turn in the direction of the wind, helping to generate energy efficiently.

Needle Roller And Cage Assemblies

In needle roller and cage assemblies, the cage holds the rollers in place and keeps them evenly spaced. It stops the rollers from touching each other, which reduces friction and wear. This helps the bearing work smoothly and last longer.

Integrated needle roller and cage assemblies make installation easier by combining the rollers and cage into one unit. This design eliminates the need for separate assembly of the components. It saves time and reduces the risk of mistakes during installation.The ready-to-use assembly ensures the rollers are correctly aligned and spaced. This simplifies the process and improves the bearing's performance.

We also provide Inner rings and loose needle rollers, which are essential components for needle bearings. Inner rings offer support and protection for the shaft, while loose needle rollers provide flexibility in various bearing designs.

Features of Needle Bearings

Load-Carrying Capacity

Needle bearings can handle both radial and axial loads thanks to their design. The long, thin rollers spread out the load, making them capable of supporting heavy forces acting sideways without deforming. For axial loads, special designs like thrust needle bearings use rollers arranged to support these forces efficiently. This makes needle bearings reliable for handling both types of loads and ensures smooth movement and long-lasting performance.

Here’s a comparison of load capacities across different types of needle bearings in table format:

Compact Design and Low-Profile

Space-saving designs in needle bearings offer several benefits

• Compact Size: These bearings fit in tight spaces, making them ideal for machines with limited space.
• Reduced Weight: Smaller bearings help reduce the overall weight of the machinery, which is important for better performance and efficiency.
• Flexible Design: Compact bearings give designers more freedom to create smaller and more adaptable systems.
• Higher Load Capacity: More bearings can fit in a small area, improving the machine's ability to handle heavy loads.
• Cost Savings: Smaller bearings use less material, and the smaller design can lower shipping and storage costs.

Here are some applications where compactness is crucial

• Automobiles: In engines, transmissions, and other components, compact bearings save space and reduce weight, improving fuel efficiency and performance.
• Aerospace: Aircraft parts, such as turbines and control systems, require compact bearings to fit into tight spaces and reduce weight, which is essential for flight efficiency.
• Medical Devices: Small bearings are used in devices like pumps, imaging machines, and surgical tools where space is limited but precise movement is necessary.
• Consumer Electronics: Small, compact bearings are used in electronics such as smartphones, cameras, and laptops to ensure smooth operation in confined spaces.
• Robotics: Compact bearings are important in robotic arms and automated systems, where they must fit into small spaces while handling high loads and precise movements.
• Industrial Machinery: In applications like conveyors, compact bearings are used to reduce machine size while maintaining performance, especially in high-speed or high-load systems.
• Power Tools: In tools like drills and saws, compact bearings help improve efficiency and ensure smooth operation in a small and lightweight design.

Precision and Mechanical Efficiency

Needle roller bearings improve machine efficiency in several ways

• Less Friction: Their design reduces friction, which saves energy and reduces heat, making machines run more smoothly.
• Higher Load Capacity: They can handle heavy loads in a small space, improving performance without taking up much room.
• Smooth Operation: Needle rollers allow smooth movement, reducing vibration and wear for better, consistent performance.
• Space-Saving Design: Their compact size helps make machines smaller and more efficient.
• Longer Life: These bearings are durable, needing less maintenance and reducing downtime, which keeps machines running smoothly.

Low friction and high transmission efficiency offer several benefits

• Energy Savings: Low friction reduces the energy required to move parts, leading to lower power consumption and improved overall energy efficiency.
• Reduced Heat Generation: Less friction means less heat is produced, preventing overheating and extending the lifespan of components.
• Improved Performance: With less resistance, systems run smoother and faster, enhancing the performance of machines and devices.
• Longer Service Life: Reduced wear and tear on parts increase their durability, minimizing the need for maintenance or replacements.
• Cost Efficiency: Lower energy consumption and longer-lasting components reduce operational and maintenance costs over time.
• Environmentally Friendly: Improved efficiency leads to less energy usage and lower emissions, making systems more eco-friendly.

Durability and Rigidity

The material properties that contribute to the durability of needle roller bearings include

• Hardness: Materials with high hardness, like steel or ceramic, resist surface wear and deformation under heavy loads, ensuring a longer lifespan.
• Corrosion Resistance: Materials like stainless steel or coatings that resist rust and corrosion protect the bearing in harsh environments, such as those exposed to moisture, chemicals, or high temperatures.
• Fatigue Resistance: Materials that can withstand repeated stresses, such as carbon chromium steel, help bearings endure constant load cycles without failure.
• Toughness: Tough materials absorb energy from shocks and impacts without breaking, maintaining performance in high-stress applications.
• Wear Resistance: Materials with low wear rates, such as those treated with special coatings or heat treatments, reduce friction and prevent premature damage, contributing to longevity.
• Thermal Stability: Materials that perform well under extreme temperatures, like heat-treated steels, maintain their strength and dimensional stability in hot or cold environments.
• Elasticity: Materials with good elasticity can maintain their shape under pressure, ensuring the bearing continues to function effectively under heavy or fluctuating loads.

Rigidity in bearings means they keep their shape and resist bending when under pressure. It's important for several reasons

• Supports Heavy Loads: Rigidity helps the bearing carry heavy loads without losing its shape, making it more stable and accurate.
• Reduces Wear: A rigid bearing maintains its structure, leading to smoother movement and less wear over time.
• Improves Performance: It keeps the system stable and working efficiently, even when the load changes.
• Maintains Precision: In precise machines like robots or medical devices, rigid bearings keep everything aligned and accurate.
• Prevents Bending: Rigidity stops the bearing from bending, ensuring better load distribution and smoother operation.
• Increases Reliability: A rigid bearing is less likely to wear out quickly, reducing the need for repairs.

Needle Bearings vs. Other Bearing Types

Needle Rollers vs. Ball Bearings

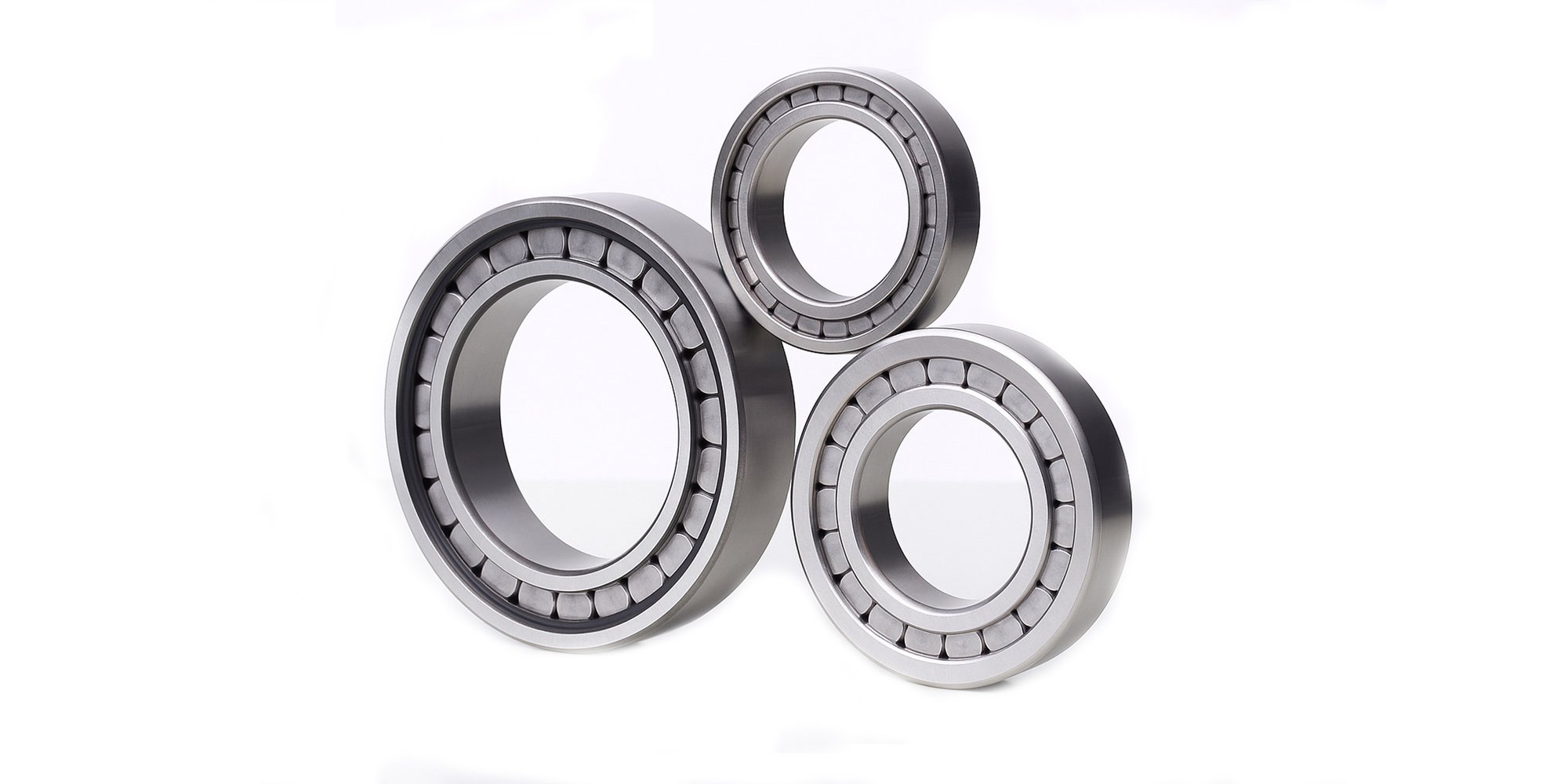

Needle Bearings vs. Cylindrical and Spherical Roller Bearings

Applications of Needle Bearings

Automotive Industry

Transmissions

• Clutch: Bearings help the clutch work smoothly, allowing easy gear changes.
• Gear Shifting: Bearings ensure smooth gear shifts, reducing friction and wear.
• Differential: Bearings support the gears that control power to the wheels, helping them turn smoothly.

Engines

• Crankshaft: Bearings support the crankshaft, allowing it to rotate smoothly and handle engine power.
• Camshaft: Bearings help the camshaft operate smoothly, ensuring correct valve timing.
• Pistons and Connecting Rods: Bushings and bearings reduce friction between the piston and rod, making the engine run efficiently.
• Timing Systems: Bearings ensure the timing belt or chain operates smoothly, keeping the engine’s timing accurate.

Gearboxes

• Shafts: Bearings support the main and output shafts, allowing smooth rotation and torque transfer.
• Gears: Bearings help gears rotate freely, reducing friction and wear.
• Synchronizers: Bearings in the synchronizers ensure smooth shifting in manual transmissions.

Other Systems

• Water Pumps and Alternators: Bearings ensure smooth rotation of the water pump and alternator.
• Timing Belt Tensioners: Bearings help maintain proper tension in the timing belt.
• Turbochargers: Bearings help the turbocharger spin at high speeds, improving performance.

Aerospace and Defense

Aircraft Engines

• Turbine and Compressor Shafts: Bearings help the shafts rotate smoothly at high speeds, reducing friction and keeping the engine running efficiently.
• Main Rotor Bearings (Helicopters): Bearings support the rotor, ensuring smooth movement and reducing vibration during flight.
• Oil Pumps: Bearings allow the oil pump to work smoothly, keeping the engine parts properly lubricated.
• Accessory Drives: Bearings ensure smooth operation of accessories like generators and pumps in the engine.
• Fan Blades (Jet Engines): Bearings support the fan blades, allowing them to spin at high speeds to generate thrust.

Landing Gear

• Shock Absorbers: Bearings and bushings help absorb the impact when the aircraft lands, reducing stress on the landing gear.
• Landing Gear Struts: Bearings allow the landing gear to smoothly extend and retract when needed.
• Wheels and Brakes: Bearings ensure the wheels rotate smoothly during landing and takeoff and help the brakes work efficiently.
• Nose Gear Steering: Bearings in the nose gear allow precise control when the aircraft is moving on the ground.
• Linkage Systems: Bearings help control the movement of the landing gear, ensuring it deploys and retracts properly.

In aerospace environments, parts like bearings and bushings must meet tough performance standards because of extreme conditions. Here are the key requirements

• High Temperature Resistance

Aerospace parts are exposed to very high and low temperatures.

Materials must handle these temperature changes without wearing out or breaking down.

• High Load Capacity

Aircraft parts face heavy loads and vibrations, especially in engines and landing gear.

Bearings and bushings must support these loads and keep things running smoothly without failing.

• Precision and Reliability

Small errors in movement can cause big problems.

Parts must be very precise and reliable to ensure everything works correctly and safely.

• Vibration and Shock Resistance

Aircraft experience strong vibrations and shocks during takeoff, flight, and landing.

Bearings and bushings need to resist these forces without breaking or wearing down.

• Corrosion Resistance

Aircraft parts are exposed to moisture, fuel, and chemicals.

Parts must resist rust and corrosion to keep them working properly over time.

• Lubrication Performance

Proper lubrication is needed to reduce friction and wear.

Bearings and bushings must work well with lubrication to keep everything running smoothly.

• Weight Reduction

Lighter parts improve fuel efficiency and performance.

Components must be lightweight but still strong enough to handle the stresses of flight.

• Longevity and Durability

Aerospace parts need to last a long time without breaking down.

Bearings and bushings must be durable and resistant to wear and tear over time.

Industrial Equipment

Bearings and bushings play an important role in industries like printing presses, textile machinery, and machine tools. Here's how they help in each area

• Printing Presses

How they’re used: Bearings are in rollers, shafts, and conveyor systems to help them move smoothly during printing.

Why they matter: They reduce friction, so the rollers rotate evenly and produce high-quality prints without errors.

• Textile Machinery

How they’re used: Bearings are found in spinning, weaving, and knitting machines, especially in parts that guide the fabric.

Why they matter: Bearings allow machines to run faster and smoother, ensuring consistent fabric tension and better quality.

• Machine Tools

How they’re used: Bearings are used in parts like spindles and shafts in machines like lathes and CNC machines.

Why they matter: Bearings ensure precise and smooth movement for cutting and shaping materials, leading to better quality parts and longer machine life.

• Benefits Across All Applications

Less Friction: Bearings help parts move smoothly, making machines more efficient.

Faster and More Accurate: They allow machines to run quickly while maintaining high precision.

Longer Life: Bearings reduce wear and tear, so machines last longer.

Less Maintenance: By reducing friction, bearings cut down on the need for repairs.

Commercial Vehicles and Additional Applications

• Showcase uses in universal joint bearings and propulsion systems.
• List applications in medical devices, commercial vehicles, and more.
• Explain versatility across various sectors.

Bearings and bushings help improve the performance of industrial equipment in many ways. Here are some examples

• Conveyor Systems: Bearings reduce friction in conveyor belts, making them run smoother and faster. This helps move materials more efficiently and saves energy.
• Pumps and Motors: Bearings support the shafts in pumps and motors, allowing them to rotate smoothly and use less energy. This also makes the equipment last longer.
• CNC Machines: Bearings ensure precise movement in CNC machines, which helps with accurate cutting and shaping of materials. This improves the quality of the finished product.
• Industrial Fans and Blowers: Bearings reduce friction in fans and blowers, allowing them to run smoothly at high speeds. This improves airflow and saves energy.
• Agricultural Equipment: Bearings make farming machines like harvesters and plows run smoothly. This reduces wear and tear and prevents downtime during busy seasons.
• Packaging Machinery: Bearings allow packaging machines to operate smoothly and efficiently at high speeds. This speeds up the packaging process and reduces maintenance needs.
• Hydraulics and Pneumatics: Bearings help reduce friction in hydraulic and pneumatic systems, leading to more consistent operation and a longer lifespan for the equipment.
• Automotive Assembly Lines: Bearings allow robotic arms on assembly lines to move smoothly and precisely. This speeds up production and improves the quality of the finished cars.
• Power Generation Equipment: Bearings help turbines and generators run smoothly, improving energy efficiency and reducing the risk of equipment failure.
• Railways and Transportation: Bearings reduce friction in train wheels and axles, making trains run faster and more efficiently while reducing wear on tracks.

Benefits and Challenges

Benefits of Needle Bearings

• High Load Capacity: Needle bearings can handle heavy loads despite their small size, making them ideal for applications where high weight-bearing ability is needed.
• Compactness and Space Efficiency: Their design is compact, allowing them to fit into tight spaces where other types of bearings might not be suitable.
• Low Friction and High Mechanical Efficiency: Needle bearings reduce friction, which improves the overall efficiency of the machine and helps it run smoothly with less energy loss.
• Durability and Rigidity: These bearings are built to last, offering long service life, and their rigid design ensures they can withstand demanding conditions without deforming.

Challenges and Limitations

• Wear and Fatigue: Needle bearings can wear out or get damaged over time, especially if not properly maintained or used under heavy loads.
• Limited Ability to Handle Axial Loads: Needle bearings are better at handling side (radial) loads but struggle with axial loads, which are forces along the axis of the bearing.
• Sensitivity to Misalignment and Speed: Needle bearings are sensitive to misalignment, which can cause uneven wear. They also don't perform well at very high speeds, as it can lead to overheating and lower efficiency.

Selecting the Right Needle Bearing

Determining Load Requirements

To assess the loads in an application, you need to consider the forces on the bearing. Radial loads act sideways, while axial loads go along the bearing’s axis, and combined loads involve both. Shock loads are sudden and short. Needle bearings are good for light to moderate radial loads, but they are not ideal for heavy axial loads or shock loads. It’s important to choose the right bearing based on the type and size of the load to ensure the equipment runs smoothly and lasts longer.

To match bearing specifications to load demands, first determine if the load is radial (sideways), axial (along the axis), or a combination of both. Next, assess if the load is light, moderate, or heavy to choose a bearing with the right strength. Needle bearings, ball bearings, and roller bearings work well for radial loads, while thrust bearings are best for axial loads. For combined loads, tapered roller or angular contact bearings are ideal. Consider the speed and temperature conditions, as high-speed or high-temperature environments may need special materials and lubrication. Lastly, make sure the bearing is durable and rigid enough to handle heavy or changing loads for long-lasting performance.

Assessing Operating Conditions

When assessing operating conditions, consider the following

• Temperature: High or low temperatures can affect how well a bearing works. High heat can break down lubrication, while cold temperatures can make the bearing brittle. Choose heat-resistant bearings for high temperatures.
• Contamination: Dirt, dust, moisture, or chemicals can damage bearings and cause them to wear out faster. Using sealed bearings and keeping the area clean can help prevent damage from contamination.

When considering speed and rotation requirements, keep these points in mind

• Speed: Bearings need to be able to handle the speed at which they rotate. High-speed applications, like motors or fans, require bearings designed for high rotational speeds to prevent overheating or wear. For low-speed applications, standard bearings may be sufficient.
• Rotation Direction: Some bearings work better depending on the direction they rotate. For example, angular contact ball bearings can handle both sideways (radial) and along-the-axis (axial) forces in one direction, while other bearings might be better for rotating in just one direction.

Considering Design Envelope and Space Constraints

When measuring available space for bearing installation, consider the following

• Size and Dimensions: Check the space where the bearing will be installed and make sure the bearing fits comfortably. Measure the diameter, width, and any other relevant dimensions.
• Clearance and Tolerance: Ensure there is enough clearance around the bearing for proper movement and heat dissipation. Too tight of a fit can cause friction, while too loose a fit can lead to misalignment.
• Mounting Type: Consider how the bearing will be mounted, whether it's pressed in, fixed with a set screw, or uses a special housing.

To select bearings that fit within design parameters, follow these steps

• Match Bearing Size: Choose a bearing with the correct dimensions (inner diameter, outer diameter, and width) that fits within the available space in the design.
• Load Capacity: Ensure the bearing can handle the expected load (radial, axial, or combined) without exceeding its capacity.
• Speed Requirements: Select a bearing that can handle the required speed of operation without excessive wear or overheating.
• Environmental Conditions: Choose a bearing that can withstand the operating temperature, potential contamination, and other environmental factors.
• Mounting Type: Make sure the bearing type fits the way it will be mounted in the design, whether it’s press-fit, set-screw, or another mounting method.

Choosing Materials and Specifications

To select the right materials for bearings, keep these points in mind

• Load Capacity: For heavy loads, use strong materials like steel, stainless steel, or ceramic.
• Speed: For high-speed use, choose materials like ceramic or special alloys that reduce friction and heat.
• Temperature Resistance: For extreme temperatures, use materials like ceramic or stainless steel that can handle heat or cold.
• Corrosion Resistance: In wet or chemical environments, choose materials like stainless steel to prevent rust.
• Lubrication: Some materials need less lubrication (like ceramic), while others (like steel) need regular lubrication.

When specifying dimensions and tolerances for bearings, consider these points

• Dimensions: Measure the inner diameter, outer diameter, and width to make sure the bearing fits correctly in the space.
• Tolerances: Define how much the size can vary. For precise applications, use tight tolerances; for less critical uses, you can allow more variation.
• Fit: Decide if the bearing should fit tightly (press fit), loosely (clearance fit), or somewhere in between (interference fit) with other parts.
• Clearance: Set the necessary gap between the bearing and housing to allow smooth movement and proper lubrication.

Maintaining Needle Bearings for Longevity

Implementing Proper Lubrication Practices

Here are the types of lubricants suitable for needle bearings

• Grease: Good for low to moderate speeds. It stays in place, helps prevent wear, and keeps dirt out.
• Oil: Best for high-speed applications. It reduces friction and helps with cooling.
• Dry Lubricants: Used when liquid lubricants can't work, such as in extreme temperatures. Materials like graphite reduce friction without oil or grease.
• Solid Film Lubricants: These are coatings (like Teflon) used in tough conditions where normal lubricants don't work. They form a thin layer to reduce friction.

Lubrication Methods

• Manual Lubrication: Apply grease or oil by hand. Good for low to moderate speeds.
• Automatic Lubrication: Machines supply lubricant automatically. Best for continuous operations.
• Oil Bath: The bearing is kept in oil to stay lubricated during operation. Used for high-speed applications.
• Grease Lubrication: Grease stays in place and reduces friction. Common for moderate speeds.
• Dry Lubrication: Dry materials like graphite reduce friction without oil, used in tough environments.

Lubrication Intervals

• Grease: Needs re-lubrication every 6 to 12 months, or more often for heavy use.
• Oil: Change or top-up oil every 1,000 to 5,000 hours, depending on conditions.
• Automatic Lubricators: Deliver lubricant regularly, so no need for manual application.
• Oil Bath: Check oil levels regularly and change every 1,000 to 3,000 hours.
• Dry Lubrication: Requires less maintenance but may need re-application in extreme conditions.

Ensuring Correct Alignment and Installation

To prevent misalignment during bearing installation, follow these steps

• Keep It Clean: Make sure the shaft, housing, and bearing are clean and free of dirt or old grease.
• Check for Damage: Inspect all parts for cracks, wear, or defects before starting.
• Use the Right Tools: Avoid hitting the bearing with a hammer. Use proper tools like presses or mounting kits.
• Align Everything: Make sure the shaft and housing are lined up straight before installing the bearing.
• Apply Even Pressure: Push the bearing in evenly. Don’t force it on one side only.
• Follow Instructions: Always follow the manufacturer’s guidelines for installation.
• Test It: Once installed, turn the bearing to make sure it moves smoothly

Precise assembly is essential to make bearings work properly and last longer. It prevents wear, vibration, and overheating, which can cause breakdowns. Proper assembly helps the bearing handle loads efficiently and avoids damage to other parts like shafts. In high-speed or heavy-duty uses, even small mistakes can lead to big problems. Accurate assembly ensures smooth operation, safety, and reliable performance.

Monitoring Operating Temperatures and Loads

Here’s how to track temperature and load during bearing operation

• lMonitor Temperature

Use sensors like thermometers or infrared tools to check the bearing’s temperature.

Install sensors near the bearing to track heat in real time.

Watch for sudden increases, which can mean problems like overheating or lack of lubrication.

• Check Load

Use load-measuring tools like strain gauges or load cells to monitor the forces on the bearing.

Attach these tools to the shaft or housing to measure changes.

• Use Monitoring Systems

Advanced systems track temperature, load, and vibration together for a full performance check.

• Do Regular Inspections

Use handheld tools to check for any unusual changes during routine maintenance.

Here are the key signs of overheating or overloading in bearings

• High Temperature: Excessively hot bearings or housing during operation indicate overheating.
• Unusual Noise: Squealing, grinding, or rumbling sounds can signal excessive load or heat.
• Discolored Components: Blue or black discoloration on the bearing, housing, or shaft shows heat damage.
• Excessive Vibration: Increased vibration often happens when bearings are under too much load or heat.
• Lubricant Issues: Burnt or leaking lubricant, or dry bearings, suggest overheating or improper lubrication.
• Surface Damage: Cracks, pitting, or spalling on the bearing surface are signs of overloading.

Conducting Regular Inspections and Maintenance

Here’s how to create effective inspection routines and maintenance schedules for bearings

• Daily Checks

Look for unusual noises, vibration, or overheating during operation.

Check for visible lubricant leaks or discoloration.

• Weekly Inspections

Inspect bearing housing and nearby components for signs of wear or misalignment.

Ensure the lubricant level is adequate and clean.

• Monthly Maintenance

Measure vibration and temperature using handheld tools or sensors.

Examine the condition of the lubricant (grease or oil) for contamination or degradation.

• Annual Overhauls

Disassemble the bearing assembly for a detailed inspection.

Check for cracks, pitting, or other surface damage.

Replace worn or damaged bearings as needed.

Maintenance Schedules

• Lubrication

Reapply grease every 6–12 months for moderate conditions, or more often in harsh environments.

Change or top-up oil every 1,000–5,000 hours of operation, depending on speed and load.

• Alignment Checks

Perform alignment checks during each scheduled maintenance to prevent misalignment issues.

• Replacement Plan

Replace bearings after their rated lifespan or when significant wear or damage is detected.

Here are common maintenance tasks for needle bearings

• Lubrication

Regularly apply fresh grease or oil to ensure smooth operation and reduce friction.

Use the recommended lubricant type and replace it if it becomes contaminated or degraded.

• Cleaning

Clean the bearing and surrounding components to remove dirt, debris, or old lubricant that may cause damage.

• Inspection

Check for signs of wear, such as pitting, scoring, or discoloration.

Look for misalignment or improper fit in the housing or shaft.

• Alignment

Ensure the bearing is properly aligned to avoid uneven load distribution or premature wear.

• Temperature Monitoring

Measure the operating temperature regularly to detect overheating, which could indicate lubrication or load issues.

• Load Monitoring

Verify that the bearing is operating within its load capacity to avoid excessive stress.

• Replacement

Replace bearings showing signs of significant wear or damage to prevent failures.

• Seal Maintenance

Inspect and replace seals to keep contaminants out and protect the bearing.

Lifespan of Needle Bearings

Factors Affecting Lifespan

Material Quality

• High-quality materials, like strong steel or ceramics, make bearings last longer and handle heavy loads better.
• Low-quality materials lead to quicker wear and damage.

Heat Treatment

• Proper heat treatment makes bearings harder and more resistant to wear, helping them last longer.

Manufacturing Accuracy

• Precise manufacturing reduces friction and ensures even load distribution, leading to better performance.
• Poor manufacturing can cause uneven wear and early failure.

Quality Control

• Regular checks during manufacturing help catch defects early, ensuring the bearing works properly.

Maintenance and operating conditions are key to keeping bearings working well and lasting longer. Regular tasks like lubrication, cleaning, and checks help prevent problems like wear or misalignment. The way a bearing is used, like the load, speed, and temperature, also affects its performance. Harsh conditions, such as high heat or heavy loads, can cause early damage. Taking care of maintenance and understanding how the bearing is used helps it work better, reduces downtime, and keeps the system running smoothly.

Calculating Basic Dynamic Load Rating

The basic dynamic load rating (C) of a bearing is an important factor used to estimate its lifespan under normal operating conditions. The formula for calculating the basic dynamic load rating is

C=(P/F)1/n

• C = Basic dynamic load rating (in N)
• P = Equivalent dynamic load on the bearing (in N)
• F = Load factor (depends on the bearing type, shape, and operating conditions)
• n = Life exponent (usually 3 for ball bearings and 10/3 for roller bearings)

Estimating Bearing Life Based on Usage

Adjusting for Load and Speed

• Bearings under heavier loads or higher speeds typically have shorter lifespans.
• Load and speed influence each other, and calculations often combine both factors to predict life. Manufacturers often provide formulas that integrate these elements to offer more precise lifespan predictions.

Reliability and service life indicators help predict how long a bearing will last and how well it will perform. Here are the main indicators

• L10 Life: This shows how long 90% of a group of bearings will last under normal conditions before failing. It’s a common way to measure bearing life.
• Mean Time Between Failures (MTBF): This indicates the average time a bearing works without failing. A higher MTBF means better reliability.
• Bearing Factor (f): This factor adjusts the bearing’s life based on conditions like temperature or dirt, giving a more accurate prediction for tough environments.
• Fatigue Life: This shows how many cycles of use a bearing can handle before it wears out. It’s important for bearings under heavy or repeated loads.
• Vibration and Noise: Unusual vibrations or noise can be a sign that the bearing is wearing out. Monitoring these helps catch problems early.
• Wear Rate: This shows how fast the bearing wears down. A high wear rate can mean poor lubrication or overload, which can shorten its life.
• Temperature: High temperatures can indicate problems like lack of lubrication or overloading. Tracking temperature helps identify issues that affect reliability.

Conclusion

Needle bearings are compact and lightweight bearings that use long, thin rollers to reduce friction.

Choosing the right needle bearing and taking care of it properly is important for it to work well and last longer.

If you need help with needle bearings or have any questions, contact LILY Bearing. Our team is ready to help you find the right solution for your needs.
