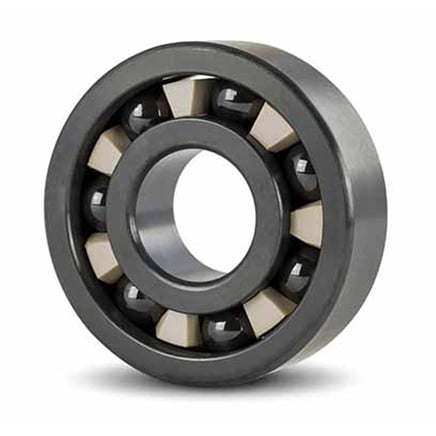

Comprehensive Guide to Si3N4 Ceramic Bearings

Silicon Nitride (Si₃N₄) ceramic bearings are rapidly transforming various industries with their unique combination of strength, lightweight properties, and environmental resistance.

This comprehensive guide delves into the specifics of Si₃N₄ ceramic bearings, exploring their advantages, applications, and key considerations for use.

Key Advantages of Si₃N₄ Ceramic Bearings

• Lightweight Nature: Si₃N₄ ceramic bearings are about 40% lighter than steel bearings. This significant reduction in weight translates into lower inertia and less energy required for acceleration and deceleration of machinery, leading to improved efficiency in high-speed applications.
• Exceptional Hardness and Wear Resistance: Silicon Nitride is renowned for its extreme hardness, surpassing most metals. This hardness contributes to superior wear resistance, resulting in a longer lifespan of the bearings even under harsh operating conditions.
• Low Friction Coefficient: The smooth surface finish of Si₃N₄ ceramic bearings, combined with their material composition, results in a very low coefficient of friction. This low friction minimizes heat generation and energy loss, enhancing the overall efficiency of the equipment.
• High-Temperature Capability: Si₃N₄ ceramic bearings retain their mechanical properties at elevated temperatures where traditional materials might degrade. This makes them suitable for applications involving high operational temperatures, extending their usability in environments unsuitable for metal bearings.

• Corrosion and Chemical Resistance: Silicon Nitride is inherently resistant to a wide array of corrosive substances, including water, saltwater, and many acids and alkalis. This resistance ensures their reliability in corrosive environments, such as chemical processing or marine applications.
• Electrical Insulation Properties: Being a non-conductive material, Si₃N₄ ceramic bearings are electrically insulating. This property is crucial in electrical and electronic applications where insulation is necessary to prevent electrical erosion and associated damage.
• Compatibility with High Vacuum Environments: Si₃N₄ bearings can operate effectively in high vacuum settings without the risk of outgassing, a common issue with some materials under vacuum.
• Reduced Thermal Expansion: The material exhibits low thermal expansion rates, providing dimensional stability across a range of temperatures and reducing clearances that can affect precision.
• Non-Magnetic: Their non-magnetic nature makes them suitable for applications where magnetic interference must be avoided, such as in certain medical or electronic equipment.
• Potential for Lubrication-Free Operation: Due to their inherent characteristics, Si₃N₄ bearings can operate without lubrication in certain applications, reducing maintenance requirements and eliminating the potential for lubricant contamination.

Cage Materials and Types

Diverse Cage Material Choices

Si₃N₄ ceramic bearings are offered with an array of cage options, each tailored to specific requirements:

• PEEK Cages: Known for their high strength and chemical resistance, PEEK cages are ideal for a range of demanding environments.
• PTFE Cages: These cages offer exceptional chemical inertness and low friction, suitable for applications requiring minimal resistance.
• 316 Stainless Steel Cages: Optimal for applications where strength and moderate resistance to heat and corrosion are necessary.

Full Complement Bearing Configuration

• Enhanced Load Capacity: Full complement Si₃N₄ ceramic bearings, characterized by additional balls and the absence of a cage, provide around 20% higher load capacity compared to caged bearings.
• Speed Consideration: However, these bearings operate at maximum speeds that are up to 70% lower than their caged counterparts, due to the increased number of rolling elements and resultant friction.

Tailoring to Temperature Extremes

• High-Temperature Applications: For environments up to 1200°C, full complement bearings are suitable, while bearings with PEEK cages can withstand up to 250°C and those with 316 stainless steel cages up to 500°C.
• Low-Temperature Performance: Below -70°C, PTFE or 316 stainless steel cages are recommended for better performance.

Si₃N₄ vs. Other Ceramic Bearings

To maximize the lifespan and performance of Si₃N₄ ceramic bearings, it is recommended to operate them below their maximum load and speed ratings.

This approach is especially crucial due to their increased brittleness compared to less hard materials.

Applications of Si₃N₄ Ceramic Bearings

Si₃N₄ ceramic bearings are utilized across various industries due to their unique properties. Key applications include:

• Marine Applications: Their resistance to complete and permanent submersion makes them ideal for marine uses.
• High Vacuum Environments: The material properties of Si₃N₄ are conducive to high vacuum applications.
• Precision Applications: The low friction and high load-bearing capacity make them suitable for precision machinery.
• Electric Vehicles: In the EV industry, their lightweight nature and electrical insulation properties enhance motor efficiency and reliability.

Conclusion

Si₃N₄ ceramic bearings, characterized by their Silicon Nitride balls, are not just components.

They represent a leap in bearing technology, offering unmatched benefits in terms of weight reduction, environmental resistance, and operational efficiency.

As industries continue to evolve, the role of Si₃N₄ ceramic bearings becomes increasingly pivotal in meeting the demands of modern applications.
